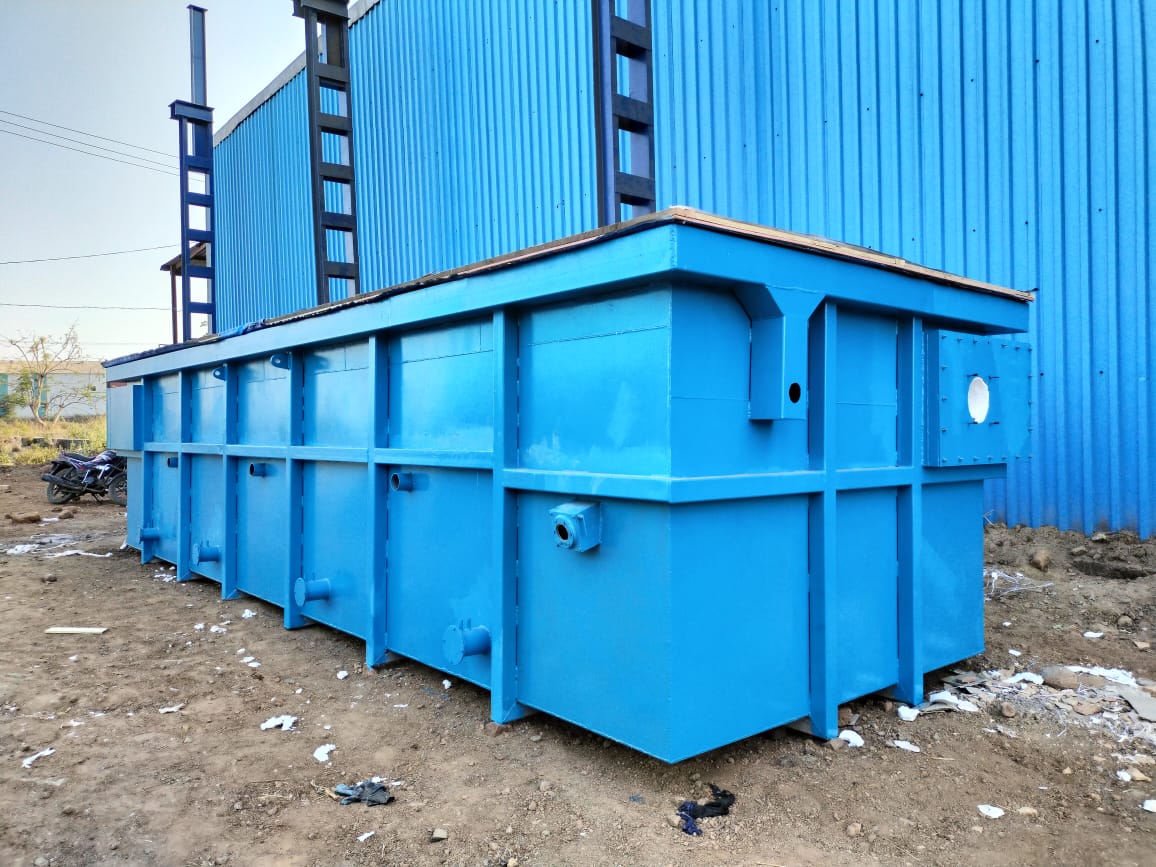

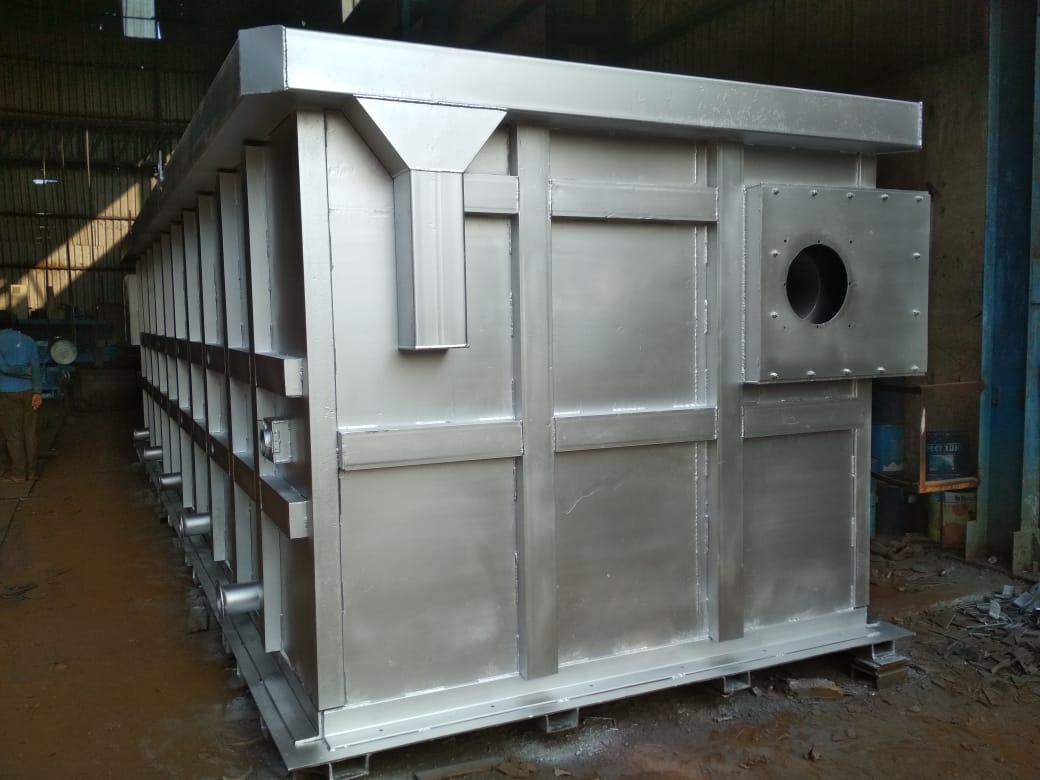

High velocity pulse fired galvanizing furnaces

The combustion system comprises of High Velocity Dual Fuel burners, mounted on the furnace on diagonally opposite corners. The burners fire horizontally along the kettle sides into the formed combustion space, causing the resultant hot products of combustion to flow rapidly around the kettle giving rise to a high degree of heat transfer through the kettle walls to the zinc.

All the burners are fitted with air orifice meters. This enables gas and air flow rates to be monitored accurately and adjusted via variable orifice valves. These meters guarantee accurate air/fuel mixture ensuring continual economic operation. The complete system is modulated by PID controller which recognizes the drop of 0.1°C and provides the signal to increase or decrease the heat input to the chamber.

• Hot Dip Galvanizing Furnaces are our basic feature of being into business.
• The furnace is insulated to an extent that operator can comfortably work around the furnace and do the maintenance in furnace pit with ease.
• The furnace is pulse fired PID control and provides excellent temperature pick up.
• We provide special feature of leak detection alarm to alert during kettle failure.
• Kettle is appropriately supported by props to maintain the size and allows the load transfer to foundation.
• The gallery design allows the optimal thermal efficiency and heat transfer to kettle.
• Provides better fuel control over the other system and reduces fuel consumption.
• Panel is having indicating LEDs of various operations which helps to find faults at earliest in the event of flame failure.
• Robust & Modular construction allows easy transportation & quick installation.
• Kettle corners are protected from Direct Firing by special protective shields.
